Introduction
The complex number system is an extension of real numbers. Historically, the invention of complex numbers allowed mathematicians to find the roots of previously unsolvable polynomials. Nowadays, engineers use complex numbers to solve problems related to electronics, signal processing, and fluid dynamics. Famous equations like Euler's Identity, Maxwell's equations, and Schrödinger's equation in quantum mechanics are examples of where the number system is used.
Excel supports complex numbers with functions that allow users to perform addition, multiplication, exponentiation, and other operations. The way the formula engine implements complex numbers is an example of functional programming. While complex functions have existed for years, Excel has recently evolved to provide more support for this paradigm with functions like LET, LAMBDA, REDUCE, and MAP. These new functions make it easier to use complex numbers in Excel without needing helper columns or array formulas.
Even if you don't plan to use complex numbers in Excel anytime soon, they are an interesting example of how a functional programming approach can solve many problems. This article gives an overview of complex numbers and their operations in Excel and provides an example that uses some of the new functions.
What is a complex number?
A complex number is represented as "x+yi", where x and y are real numbers, and i is the imaginary unit satisfying the equation i2=-1. For example, the complex number "4+3i" has a real part of 4 and an imaginary part of 3. In Excel, we enter this complex number in a cell like this:
="4+3i" // the complex number z
We draw this complex number as an arrow in the complex plane.
In Excel, complex numbers are passed to functions as strings containing the suffix "i" or "j". For example, to add two complex numbers together, we pass them to the IMSUM function like this.
=IMSUM("2+3i", "5+7i") // returns "7+10i"
You can also construct a complex number using the COMPLEX function, which avoids dealing with strings altogether.
=COMPLEX(4,3) // returns "4+3i"
To get the real part of the complex number, use the IMREAL function.
=IMREAL(COMPLEX(4,3)) // returns 4
Use the IMAGINARY function to get the imaginary part of the complex number.
=IMAGINARY(COMPLEX(4,3)) // returns 3
Conceptually, the complex number system is a two-dimensional number system that describes rotations. In math, the property i² = -1 defines the number system algebraically and is how the number system encodes rotations.
Of course, Excel handles this logic for us, but knowing this property is useful because it's how you calculate the result of an operation with complex numbers by hand. For example, to multiply the complex numbers "i" and "4+3i" together, you apply this property to calculate the product.
We perform this same multiplication in Excel using a function call.
=IMPRODUCT("i", "4+3i") // returns -3+4i
Visually, multiplying a complex number like "4+3i" by "i" rotates the number 90 degrees counterclockwise around the origin.
As shown in this basic example, complex numbers describe rotations. Because of this, a complex number is often characterized by its radius and angle. The radius of the complex number "4+3i" we've been working with so far is 5, and the angle is 0.643501109 radians (approximately 37 degrees).
The angle of a complex number is measured in radians from the positive real axis, where counterclockwise is positive. The angle is also referred to as the phase of the complex number. To get the angle of the complex number, use the IMARGUMENT function.
=IMARGUMENT(COMPLEX(4,3)) // returns 0.643501109
To get the magnitude or length of the complex number, use the IMABS function.
=IMABS(COMPLEX(4,3)) // returns 5
Complex Operations
To add two complex numbers together, use the IMSUM function. For example, to add the complex numbers "4+3i" and "2-5i" together, use the following formula.
=IMSUM(
COMPLEX(4, 3),
COMPLEX(2,-5)
) // returns "6-2i"
The sum of two complex numbers is drawn by arranging the arrows tip-to-tail and drawing an arrow from the origin to the tip of the second number. This arrow is equal to the sum of the complex numbers.
Use the IMPRODUCT function to multiply complex numbers together. For example, use the following formula to multiply the complex numbers "1+2i" and "3+5i" together.
=IMPRODUCT(
COMPLEX(1, 2),
COMPLEX(3, 5)
) // returns -7+11i

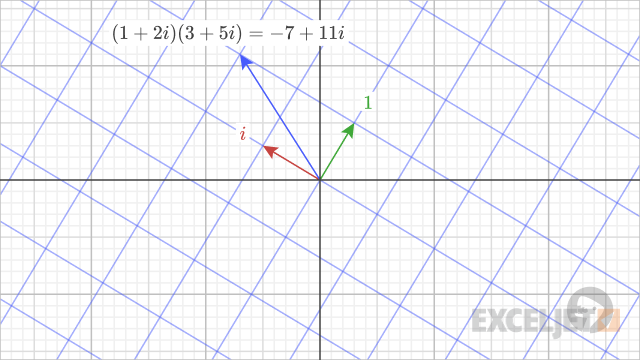

We can visualize the product of the two numbers by transforming the coordinate system (shown in blue) so that the one (the green arrow) goes to the number "3+5i" in the complex plane. When we draw the transformed position of the other number, "1+2i", its tip sits at the result of the multiplication.
The IMPRODUCT page discusses this in more detail. The point is Excel has a whole suite of functions for performing complex operations in addition to IMSUM and IMPRODUCT, such as IMSUB, IMDIV, IMSQRT, and IMPOWER. Each function corresponds to an operation that you perform with complex numbers.
Complex Functions in Excel
Below is a table of the functions we've discussed so far. It also contains one function we haven't discussed yet, which is perhaps the most important function to know about complex numbers. The full list of 20+ complex functions is documented in the Engineering section of our functions reference here.
| Function | Purpose |
|---|---|
| COMPLEX | Creates a complex number |
| IMREAL | Get the real part of a complex number |
| IMAGINARY | Get the imaginary part of a complex number |
| IMABS | Get the magnitude of a complex number |
| IMARGUMENT | Get the angle of a complex number |
| IMSUM | Get the sum of complex numbers |
| IMPRODUCT | Get the product of complex numbers |
| IMEXP | Get the exponential of a complex number |
In practice, using complex numbers in Excel involves translating math into a series of complex function calls. Nothing is a better example of this than IMEXP or the complex exponential function.
The Complex Exponential Function
Anytime the letter e is raised to a power containing the complex constant "i" in equations and formulas, we express this in Excel using the IMEXP function. For example, the formula for a discrete Fourier transform looks like this.
We'll discuss the specifics of this example later. For now, know that raising e to a complex number "z = x + yi" is the same as passing the complex number as input to the IMEXP function in Excel.
=IMEXP(z) // we write e^z like this
Complex numbers typically appear with the exponential function. Quite famously, the output of this function for complex input is defined by the trigonometric functions sine and cosine.
=IMEXP("θi") // returns cos(θ) + i sin(θ)
This formula is called Euler's Formula. One way to quickly understand why it is so useful is to use it to rotate a complex number in the complex plane. For example, to rotate "4 + 3i" around the origin by 270 degrees, multiply the complex number by the value produced by the formula and the angle.
=IMPRODUCT(
COMPLEX(4, 3),
IMEXP(COMPLEX(0, RADIANS(270)))
) // returns "3-4i"
Visually, this corresponds to rotating the number counterclockwise around the origin by the angle.
Much more can be said about the IMEXP function's useful properties and how it relates to trigonometry. See also the related functions, such as IMLN, IMSIN, IMCOS, and more. Since complex numbers typically appear with the exponential function, it's a great place to learn more about the number system.
Signal Processing Example
Complex numbers appear in contexts involving rotations, oscillations, and wave-like phenomena. In practice, we translate the math that describes these applications into a bunch of function calls to calculate results using complex numbers. This means using a function like IMSUM instead of the plus (+) operator to describe addition. Recently, Excel's formula engine has been changing to make these calculations easier without helper columns. New functions like LET, LAMBDA, MAP, and SEQUENCE allow for a more functional programming approach when calculating results.
To be clear, using complex numbers in Excel is already an example of functional programming. These new functions just make the intermediate calculations easier to perform. A good example is the formula for a Discrete Fourier Transform.

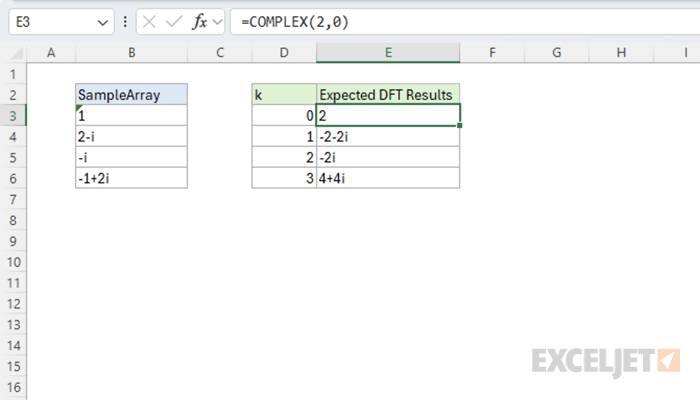

This formula is the same version as the one you'll find on the Discrete Fourier Transform Wikipedia page. We'll also use the small array of sample data and expected output that someone has provided on the Wikipedia page.
Given an array of sample data, this formula returns a complex number for k, where k is a number that starts at zero and goes to the sample size minus one. This formula has a lot going on, so let's break it down. Inside the summation, we multiply an element of the sample array by e raised to some complex power, including π and some variables related to the sample data.
In Excel, we calculate this intermediate value using the IMPRODUCT function and the IMEXP function.
IMPRODUCT(
INDEX(sampleArray, n),
IMEXP(COMPLEX(0, -2 * PI() * k * (n - 1) / m))
)
These intermediate values are wrapped in the summation operator, meaning we want to sum together the values for each value of n, ranging from 0 to the size of the sample array minus one. This is where the new functions come in handy. We can wrap the expression that calculates an intermediate value in a LAMBDA function that takes in an index of the sample array. This function is passed to MAP along with an array of indices to calculate all of the intermediate complex values, which we sum together with IMSUM.
=LET(
sampleArray, B3:B6,
m, ROWS(sampleArray),
k, 0,
IMSUM(
MAP(
SEQUENCE(m),
LAMBDA(n,
IMPRODUCT(
INDEX(sampleArray, n),
IMEXP(COMPLEX(0, -2 * PI() * k * (n - 1) / m))
)
)
)
)
)
This formula calculates the sum for k=0, which, with our sample data, we expect to be 2. Note that m has been substituted for N because Excel does not distinguish the lowercase n from the capital N in the formula.
Now, you could use a helper column to provide values for k and copy this formula down to calculate the results of the discrete Fourier transform, but let's generate and pass in the values of k ourselves. This involves wrapping the previous formula in a lambda that takes k as input and passing that lambda to the MAP function. Here is the full formula, which "spills" the results in the cell's column.
=LET(
sampleArray, B3:B6,
m, ROWS( sampleArray),
kValues, SEQUENCE(m, 1, 0, 1),
x_k, LAMBDA(k,
IMSUM(
MAP(
SEQUENCE(m),
LAMBDA(n,
IMPRODUCT(
INDEX(sampleArray, n),
IMEXP(COMPLEX(0, -2 * PI() * k * (n - 1) / m))
)
)
)
)
),
MAP(kValues, x_k)
)

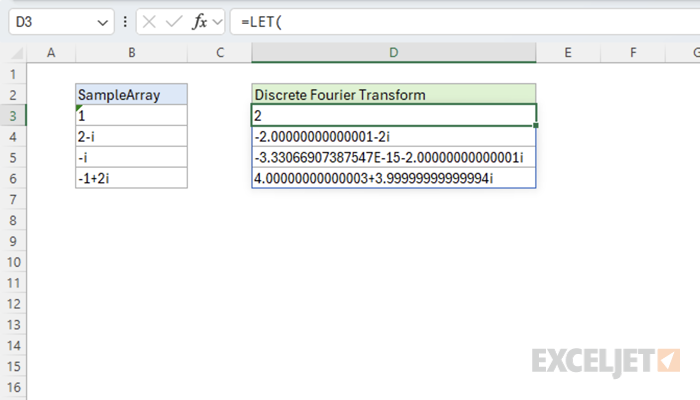

This is the result when you enter the formula in Excel.
There are a couple of things to note about calculating the results of a Discrete Fourier Transform in Excel this way. The first is that due to the error in floating-point arithmetic, the actual results are slightly different from what we expected. For example, when we compare the numbers for k=2, we expect the result to be -2i when we calculated it to be -3.33066907387547E-15-2.00000000000001i. This number is really close to the value of -2i but not quite exactly equal to -2i.
The second thing to note is that there are faster algorithms than this formula to calculate the discrete Fourier transform. When testing this formula on sample arrays of less than 500 samples, it performs well. However, when testing this formula on an array of 1024 samples, it took about 5 seconds to calculate the results (results may vary depending on your computer specs). Excel actually provides an implementation of Fast Fourier Transform in the Analysis ToolPak, which is an add-in provided for free by Microsoft. This completes almost immediately for the same-sized sample array. When using the FFT algorithm, the size of the array must be a power of 2 and can be no larger than 4096 samples.
The existence of this add-in does not diminish the fact that we calculated a Discrete Fourier Transform in Excel using a functional programming approach. It's a good example of how the new functions can be used to describe something quite complicated. It's not hard to imagine someone implementing an FFT algorithm using this kind of approach, but that certainly is out of the scope of this article.
