Purpose
Return value
Syntax
=IMABS(inumber)- inumber - The string representing a complex number.
How to use

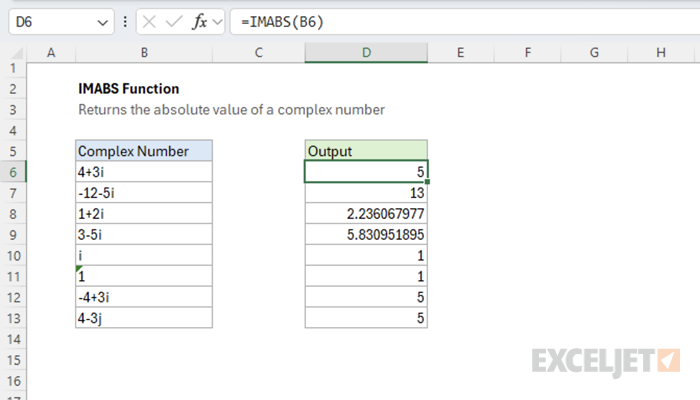

The Excel IMABS function returns the absolute value of a complex number. For example:
=IMABS("4+3i") // returns 5
Explanation
The absolute value of a complex number goes by several other names: modulus, length, or magnitude. All of them refer to the same thing. When we draw the arrow representing a complex number, the absolute value is equal to the distance from the origin to the tip of the complex number.
The IMABS function always returns a positive number. For example, consider the complex number "-12-5i" which points in a different direction.
The absolute value of this complex number is positive 13.
=IMABS("-12-5i") // returns 13
In general, the absolute value of a complex number "z=x+yi" is given by the formula below.
=SQRT(x^2 + y^2)
Notes
- IMABS returns a #NUM error when the input does not represent a valid complex number.
Images courtesy of wumbo.net.
