## Summary

XLOOKUP can be used to lookup and retrieve rows or columns. In the example shown, the formula in H5 is:

``````=XLOOKUP(H4,C4:F4,C5:F8)
``````

Since all data in the C5:F8 is provided as the return_array XLOOKUP returns the range E5:E8 as a result, which spills into the range H5:H8.

## Generic formula

``=XLOOKUP(value,headers,data) // lookup row``

## Explanation

One of the nice benefits of XLOOKUP is it can easily return entire rows or columns as a lookup result. This can be done also with INDEX and MATCH, but the syntax is more complex.

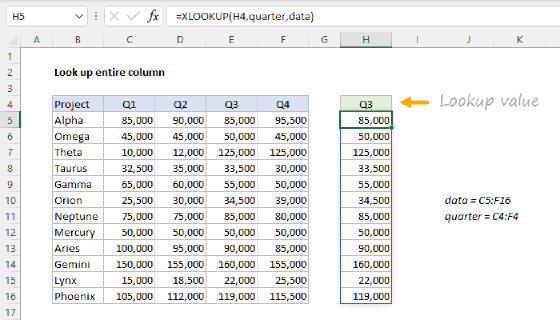

In the example shown, we want to retrieve all values associated with Q3. The formula in H5 is:

``````=XLOOKUP(H4,C4:F4,C5:F8)
``````
• The lookup_value comes from cell H4, which contains "Q3"
• The lookup_array is the range C4:F4, which quarters in a header
• The return_array is C5:F8, which contains all data
• The match_mode is not provided and defaults to 0 (exact match)
• The search_mode is not provided and defaults to 1 (first to last)

XLOOKUP finds "Q3" as the second item in C4:F4 and returns the second column of the return_array, the range E5:E8.

### Lookup row

In the example shown, XLOOKUP is also used to lookup a row. The formula in C10 is:

``````=XLOOKUP(B10,B5:B8,C5:F8)
``````
• The lookup_value comes from cell B10, which contains "Central"
• The lookup_array is the range B5:B8, which lists regions
• The return_array is C5:F8, which contains all data
• The match_mode is not provided and defaults to 0 (exact match)
• The search_mode is not provided and defaults to 1 (first to last)

XLOOKUP finds "Central" as the third item in B5:B8 and returns the third row of the return_array, the range C7:F7.

### Further processing with other functions

The results delivered by XLOOKUP can be handed off to other functions for further processing. For example, to add up all Q3 numbers, you can use the SUM function like this:

``````=SUM(XLOOKUP("Q3",C4:F4,C5:F8)) // sum Q3
``````

which returns a single result, 503,250.

Dynamic Array Formulas are available in Office 365 only. Author ### Dave Bruns
